13 5kW* Premium + Electric Dirt Bike
TD5 EVO
Future Tech. Today
<<<<< DRAG IMAGE TO CONTROL >>>>>
Bicicleta de cross eléctrica techtron TD3 EVO - 8 kW* 72 V 40 Ah
Elige opciones
Product Description

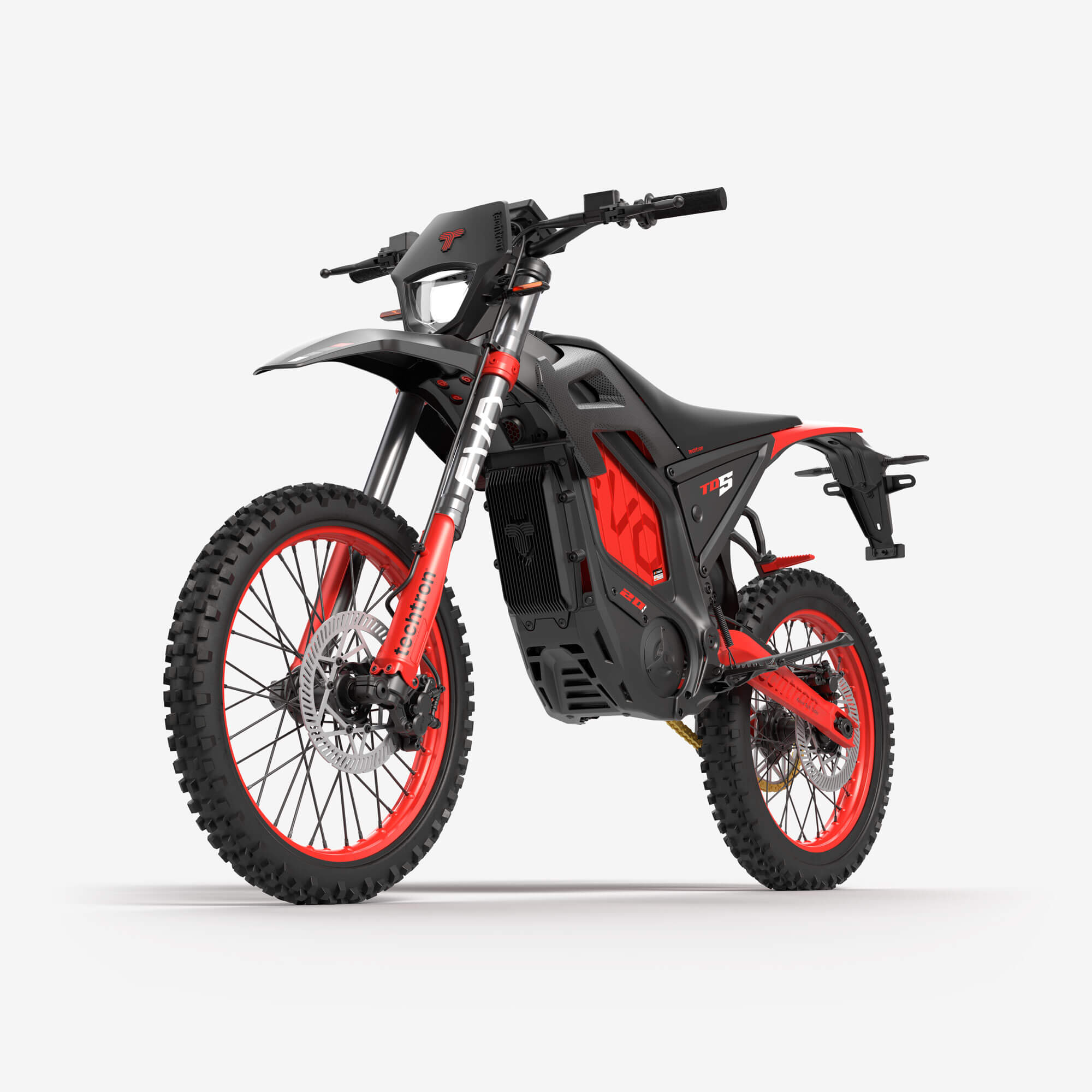

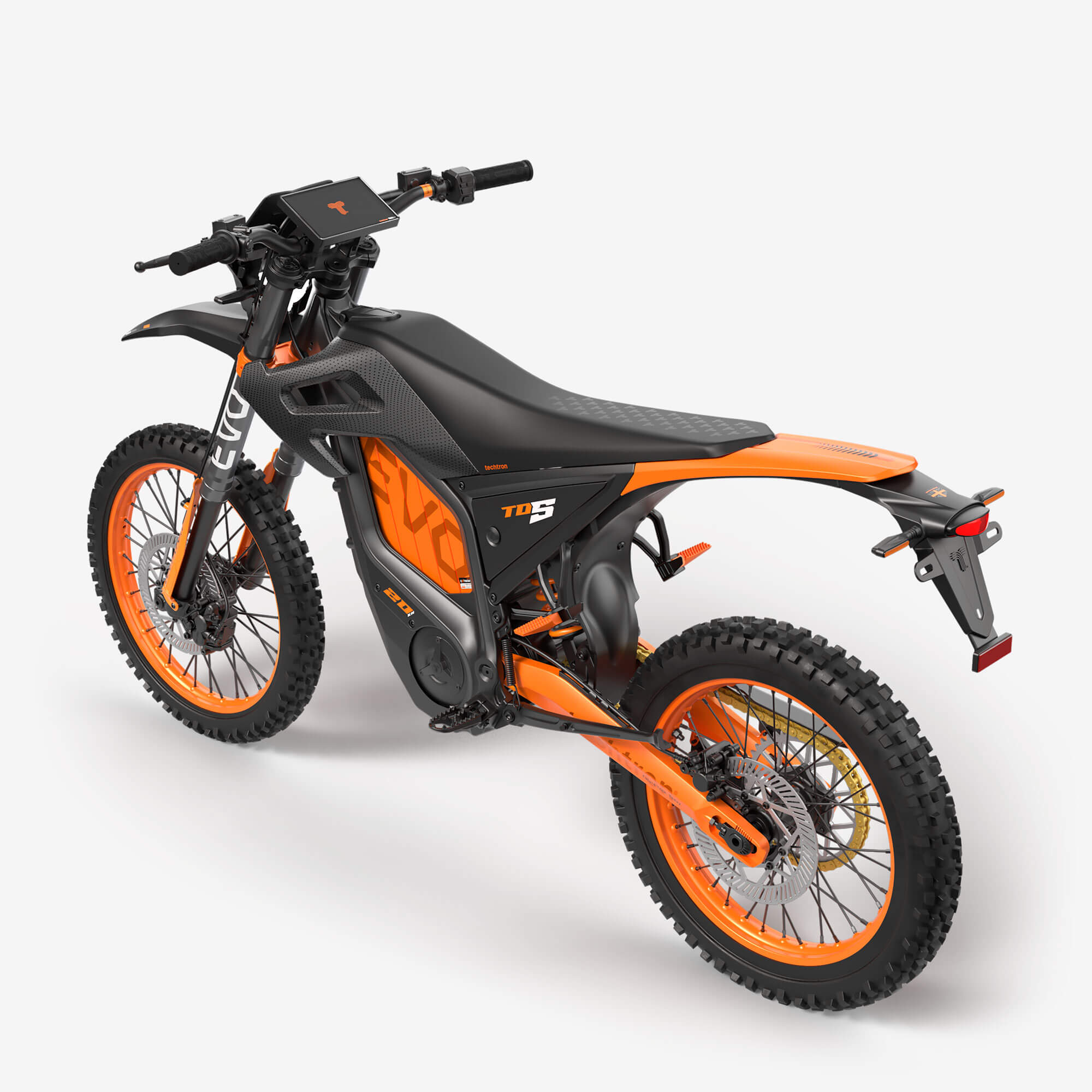

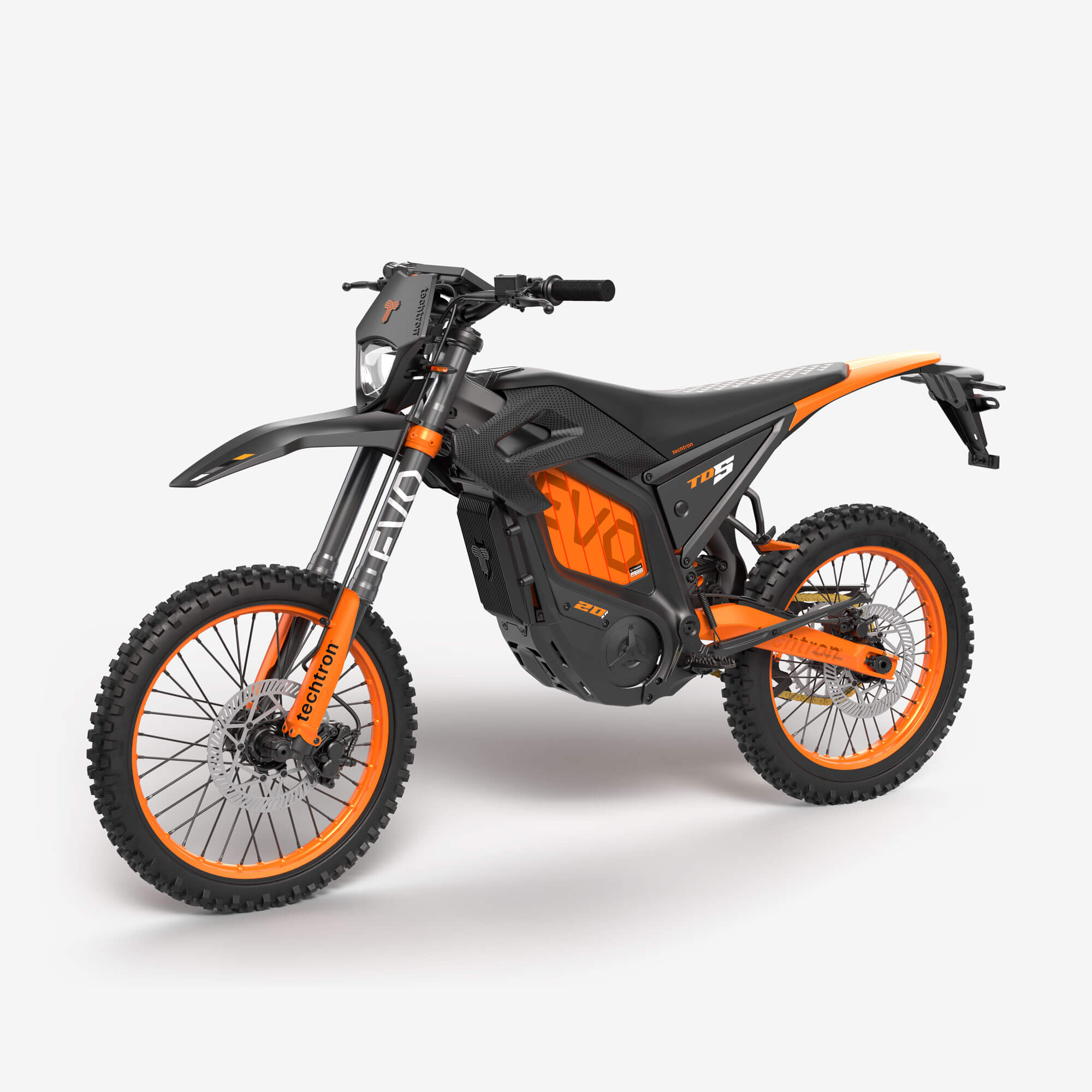

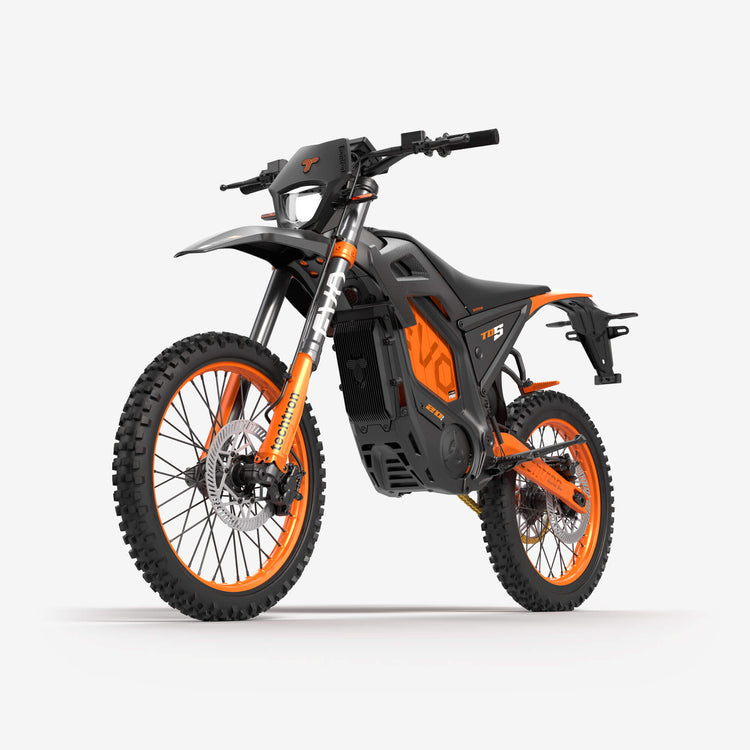

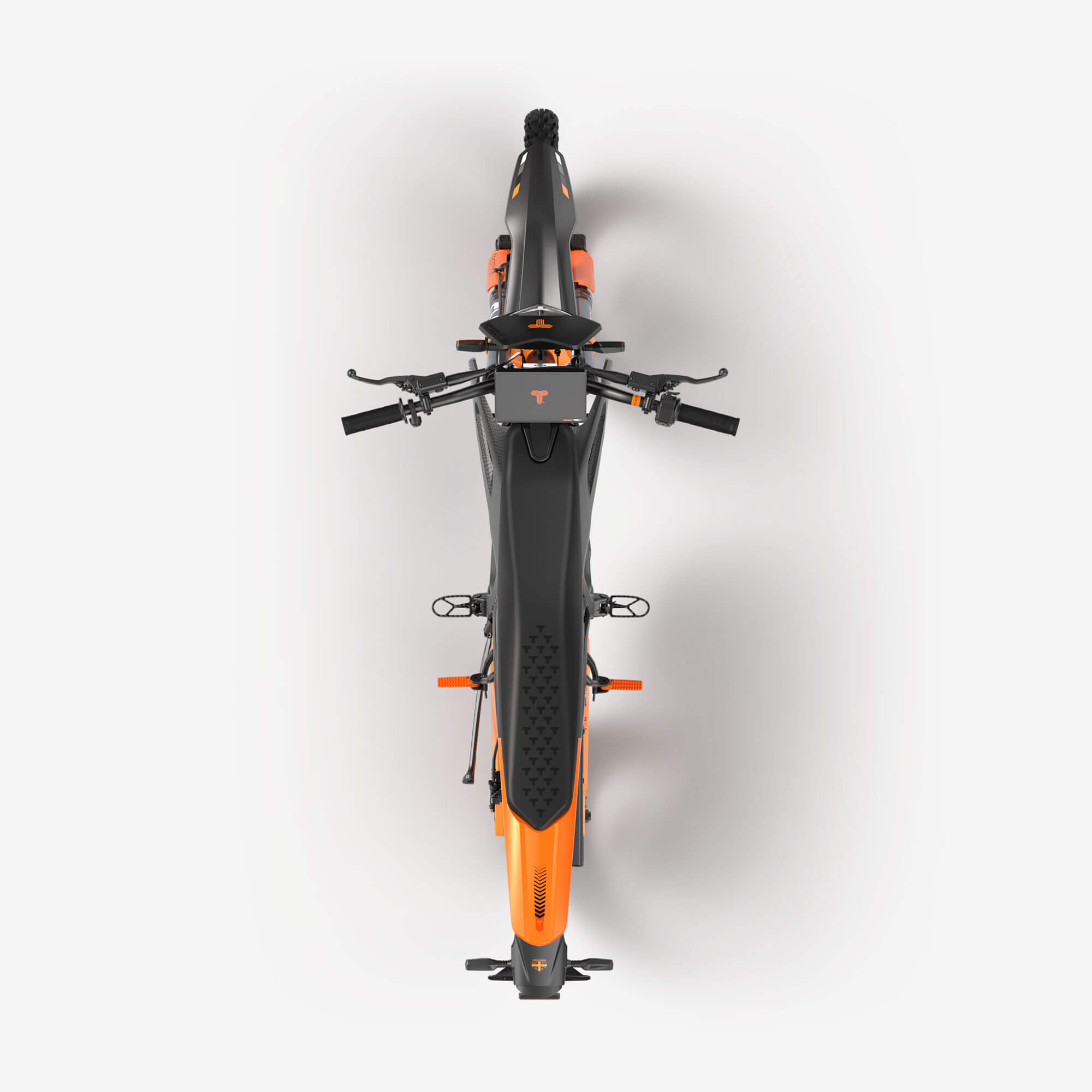

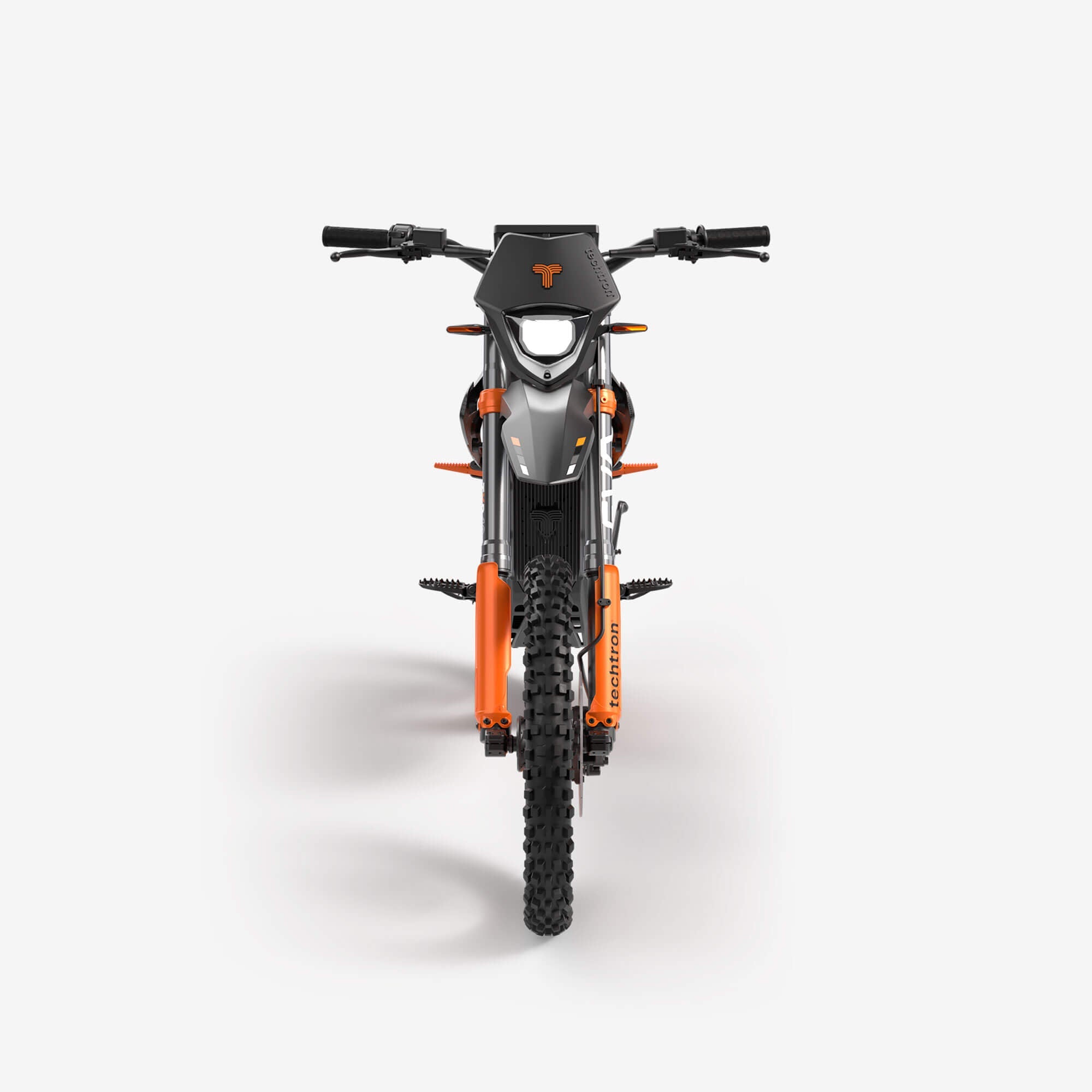

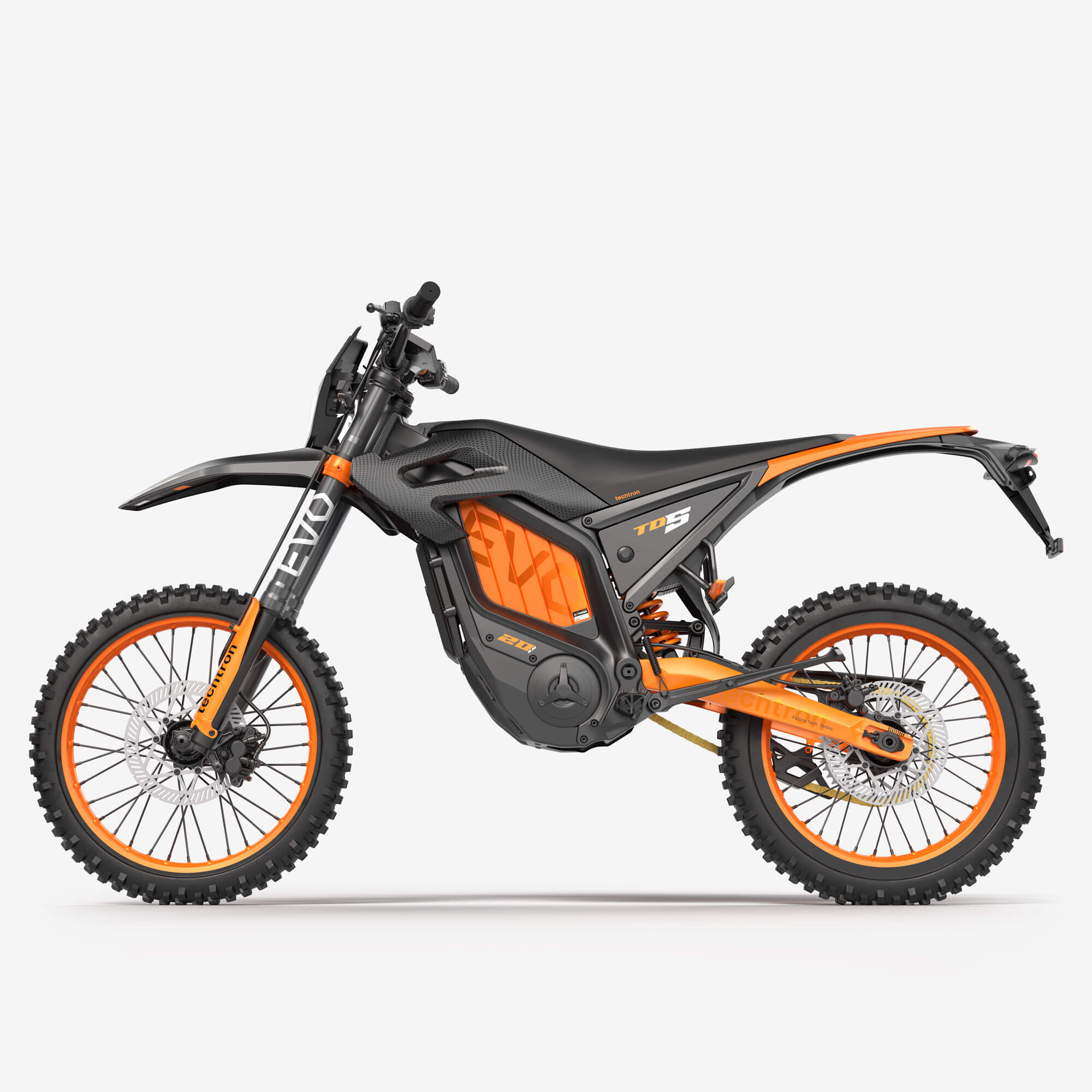

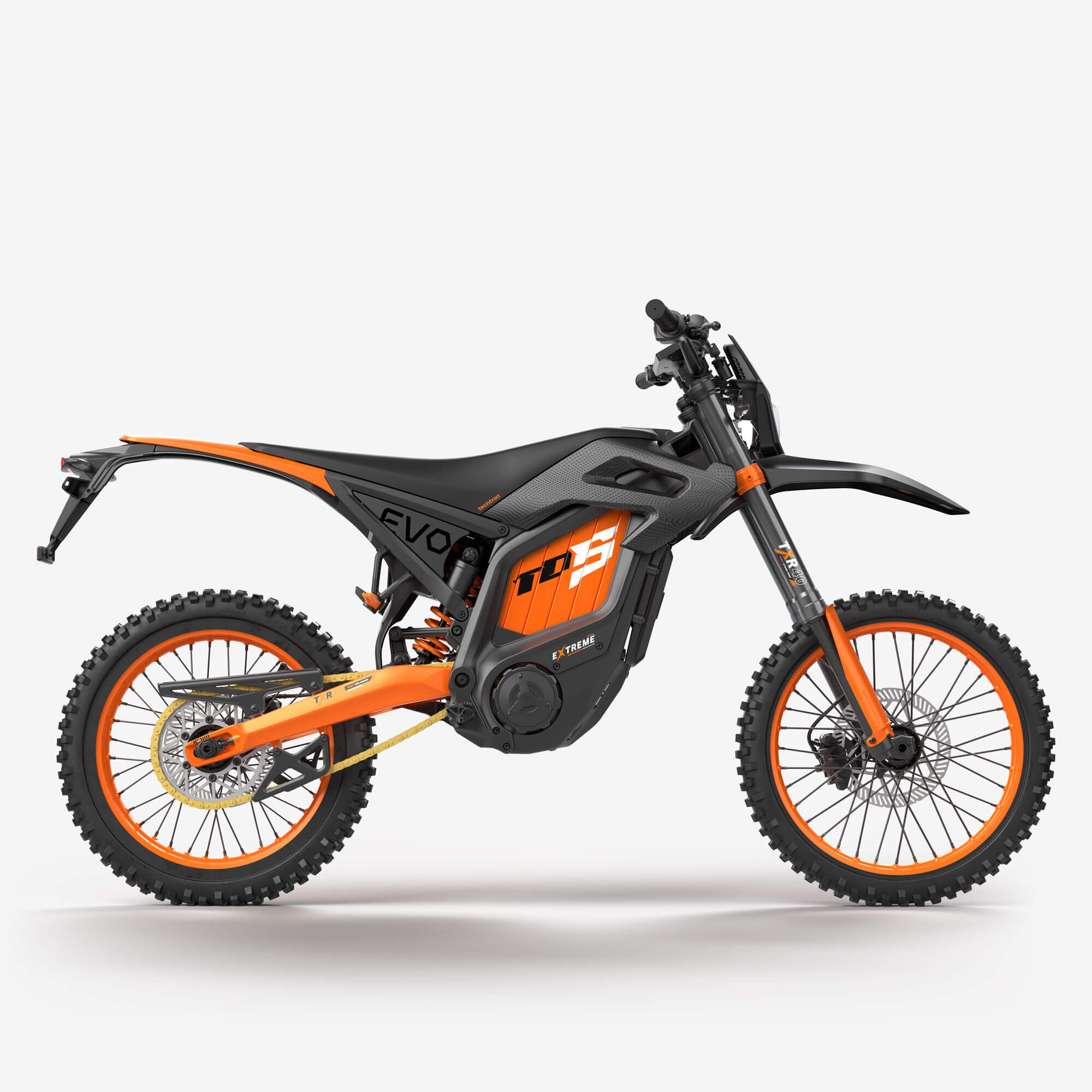

techtron® TD5 EVO – Built for Power, Precision, and Performance
Engineered for riders who demand uncompromising speed, agility, and durability, the techtron® TD5 EVO redefines what’s possible in electric dirt biking. Delivering an astonishing 13.5kW peak power* and 500Nm of torque, this machine accelerates from 0–50 km/h in just 1.9 seconds – making it one of the fastest in its class. Powered by a 74V 50Ah Samsung lithium-ion battery with 21700 high-density cells, the TD5 EVO achieves up to 140km on a single charge at 40km/h, combining thrilling performance with long-range endurance.
The PMSM (Permanent Magnet Synchronous Motor) ensures exceptional efficiency and high torque density, while the FAST® race-grade suspension – developed with Fast Ace – offers precision handling and control over any terrain. The TDC2 Advanced Tech Display Console with Bluetooth 5.3 integration and techtron® App support keeps you fully connected, delivering navigation, performance data, and ride customisation at your fingertips.
Built on a lightweight, forged aluminium alloy frame and equipped with CST high-grip tyres, hydraulic disc brakes, and regenerative braking, the TD5 EVO blends cutting-edge technology with rugged durability. From mountain trails to competitive racing, urban streets to off-road exploration, this is the e-dirt bike built for every environment.
Key Features
Powerful Performance:
High-torque electric motor delivering 13.5kW peak* and 500Nm torque for rapid acceleration and challenging terrain.
FAST® Suspension:
Race-grade adjustable front and rear suspension for precise control on any surface.
TDC2 Display Console:
7" TFT touch display with navigation, media, ride data, and full connectivity.
Bluetooth 5.3 Connectivity:
Fast, stable device connections for navigation, music, and app control.
techtron® App:
Manage bike settings, performance data, and navigation via smartphone.
Regenerative Braking:
Recovers energy during braking to extend range and improve efficiency.
Advanced E-Brakes (EABS):
Electronic braking system for stability, safety, and smooth stopping.
Hydraulic Disc Brakes:
4-piston hydraulic brakes with strong stopping power.
Ultra-Fast Charging:
Full charge in 3 hours with 15A fast charger.
Certified Charger:
TÜV-certified CE and UKCA compliance for safety and quality.
Eco-Friendly Performance:
Zero-emissions, low-maintenance design with high-grip off-road tyres for all-terrain traction.
Unmatched Durability:
High-strength aluminium alloy frame forged under 7,000 tons for maximum strength and low weight.
Effortless Efficiency:
Lightweight build with extended range for versatile riding.
Vector Sine Wave Controller:
Real-time monitoring of speed, torque, and current for optimised performance.
CST Tyres:
Durable, high-traction tyres for varied terrain.
Integrated Turn Signals:
Built-in indicators for improved visibility.
App-Controlled Safety Lights:
LED lights controlled directly from the app.
LithoGeniX® Finish:
Durable, high-contrast graphics with long-lasting protection.
Passenger Footrests:
Integrated and adjustable rear passenger footrests.
TOP SPEED
UP TO
105 km/h
BATTERY
PURE LITHIUM SAMSUNG 21700
70 V 50 Ah
RANGE
UP TO
140 km
MOTOR
PEAK POWER
13.5 kW
Xxxx
Xxxx
Xxxx
Xxxx
Xxxx
Xxxx
Xxxx
Xxxx
Specifications
Model:
techtron® TD5 EVO
Motor Type:
PMSM (Permanent Magnet Synchronous Motor) – IP65 Rated
Peak Power / Continuous Power:
13.5kW* Peak / 6kW Continuous
Torque:
500Nm
Top Speed:
Up to 105km/h*
Acceleration (0–50 km/h):
1.9 Seconds
Maximum Range:
Up to 140km @ 40km/h
Battery Type:
techtron® Xtreme® Semi-Solid State Polymer Pouch Cell with 21700 High-Density Cells
Battery Capacity:
74V / 50Ah
Charging Time:
3 Hours (15A Ultra Dynamic Super Fast Charger)
Charger Certification:
TÜV-Certified CE & UKCA Compliant
Frame:
Lightweight 6061-T44 & T6 Aluminium Alloy Forged Frame (7,000 Ton Pressed)
Suspension:

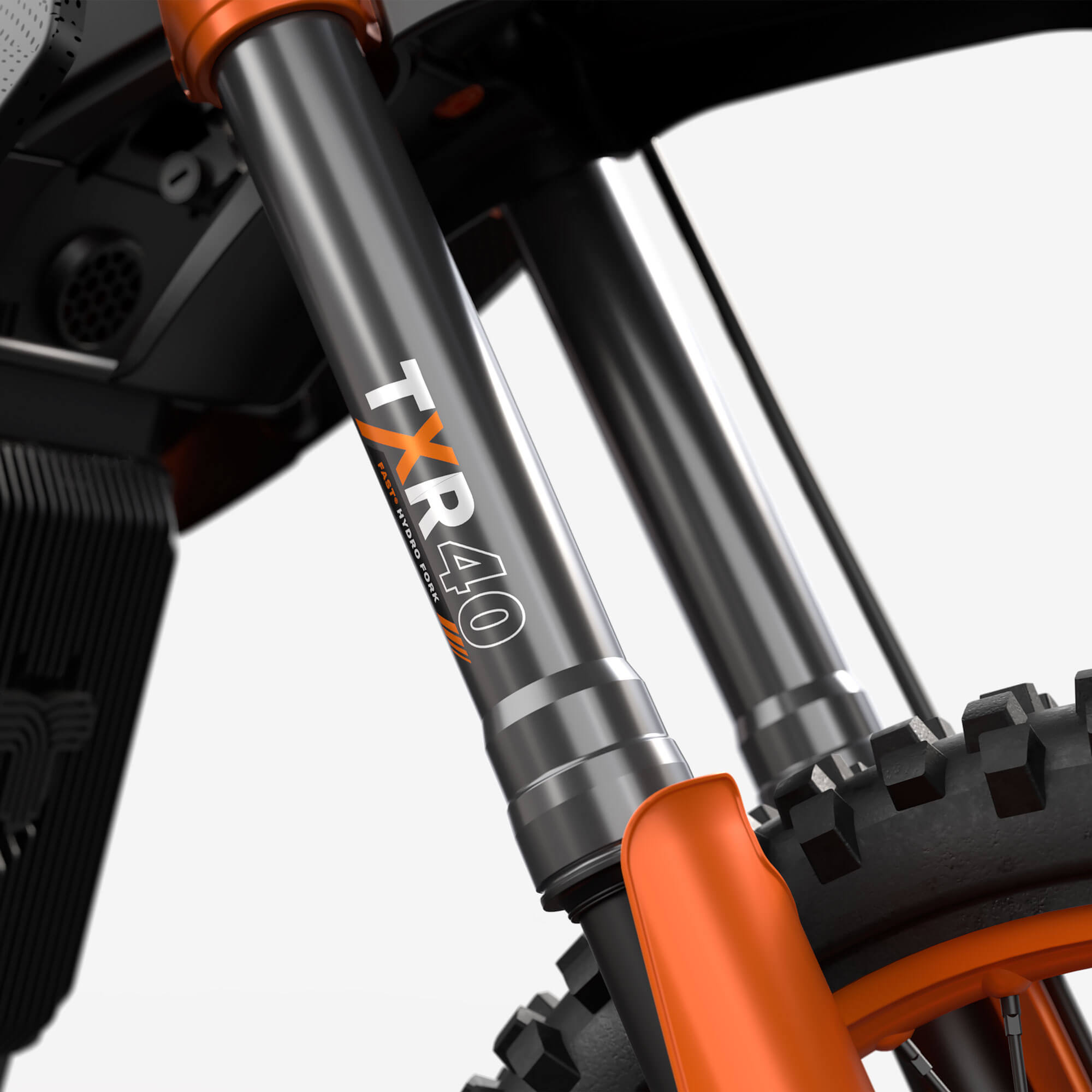

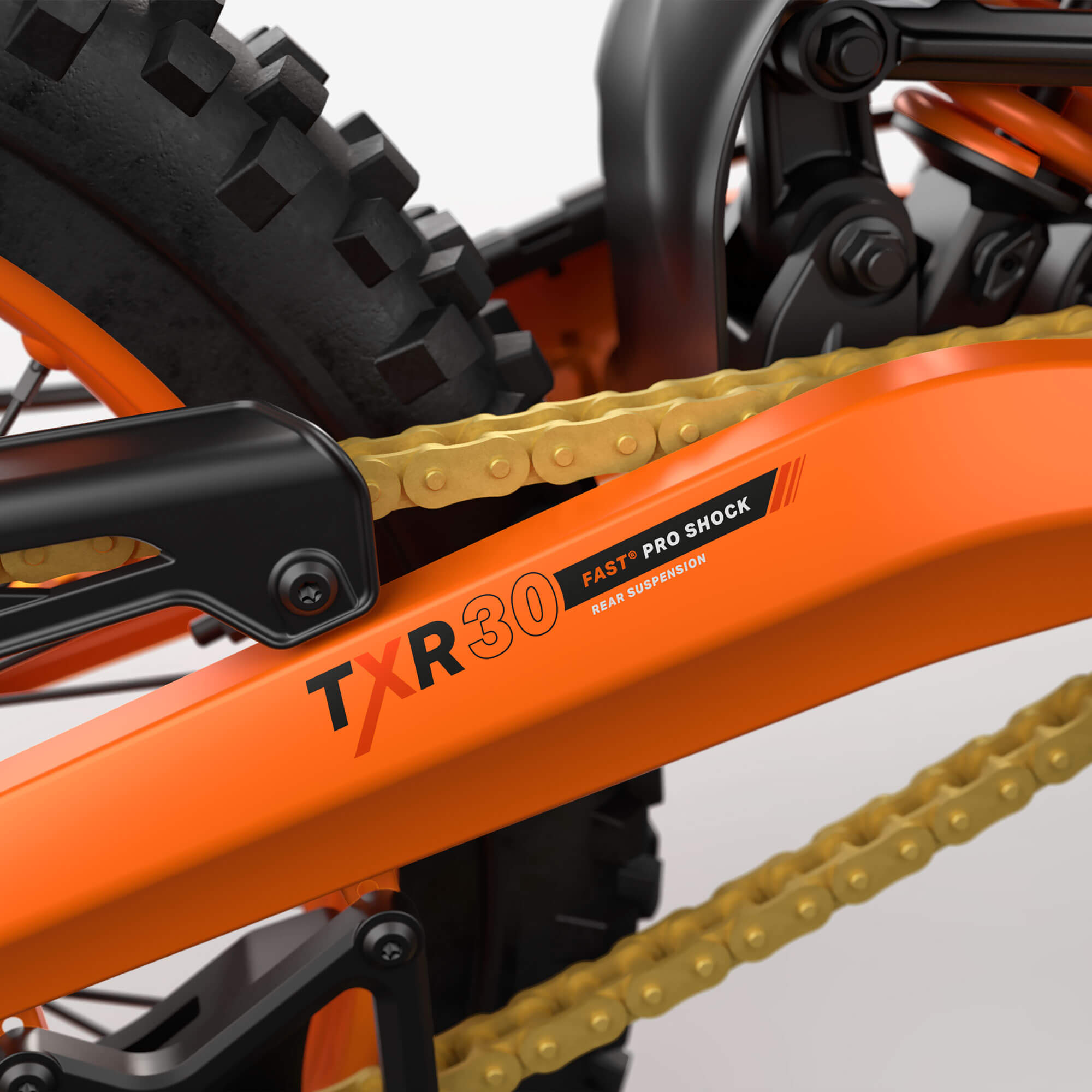

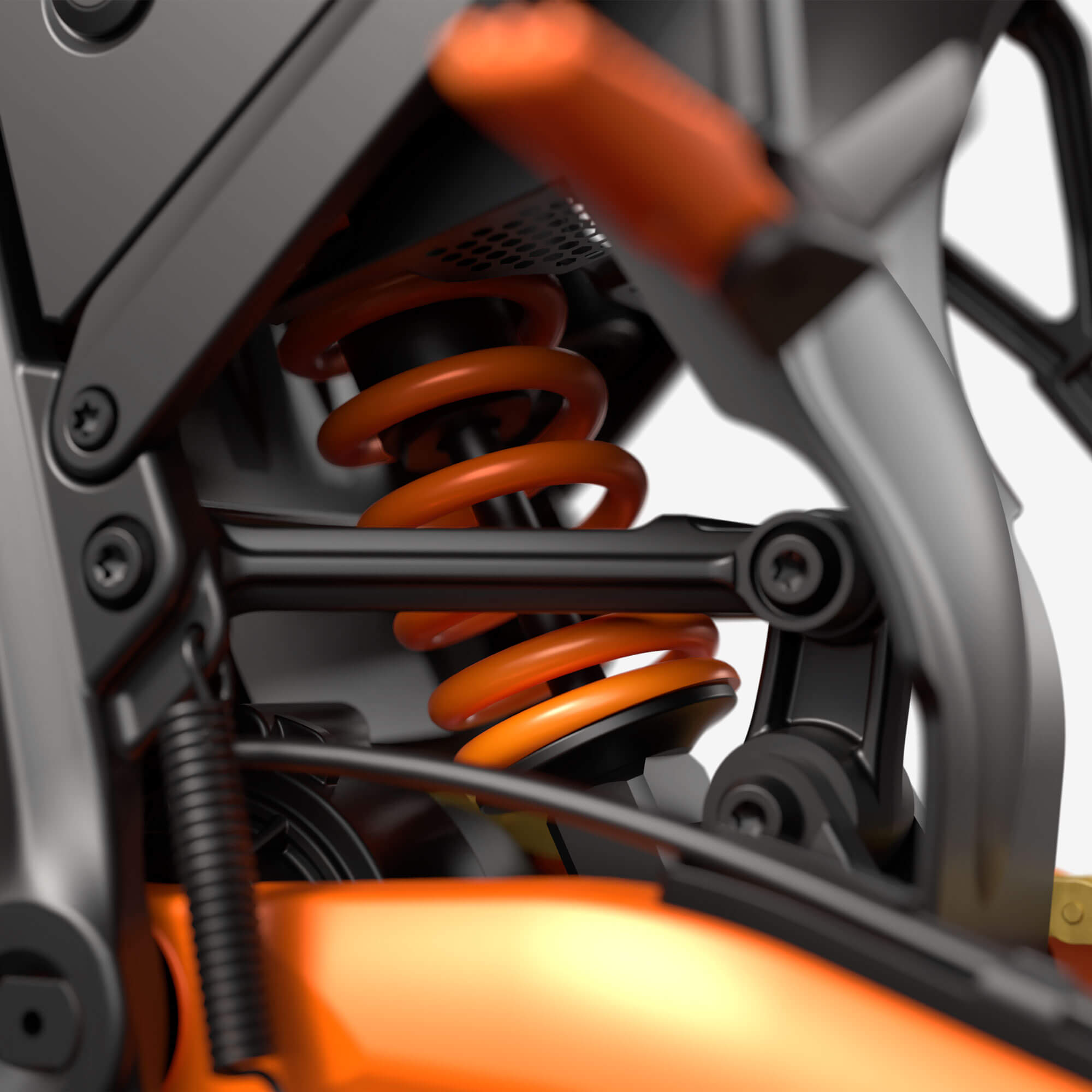

FAST® Race-Grade Suspension – TXR40 Hydro Fork (240mm Travel) / TXR30 Rear Pro Shock (Adjustable Damping)
Brakes:
Hydraulic Disc Brakes with 4-Piston Callipers, 240mm Front & Rear Rotors, EABS (Electronic Assisted Braking System)
Regenerative Braking:
Energy Recovery System to Extend Range and Improve Efficiency
Tyres:
Front: CST CM713 80/100-19 – MX Tread Pattern
Rear: CST Surge I 100/90-18 – Intermediate Terrain Block Pattern
Display:
TDC2 Advanced Tech Display Console – 7" TFT/UHD Capacitive Touch, IP66 Rated, Apple CarPlay®, Android Auto™, Built-In Camera, Bluetooth 5.3
Lighting:
App-Controlled LED Headlight, Brake Light & Integrated Turn Signals
Ride Modes:
Economy / Drive / Sport / Parking
Connectivity:
Bluetooth 5.3, techtron® App with GPS Tracking
Dimensions (L × W × H):
1977 × 807 × 1155 mm
Seat Height:
870mm
Ground Clearance:
318mm
Wheelbase:
1345mm
Kerb Weight:
85kg
Max Load:
150kg
Max Climb Angle:
45°
Colours:

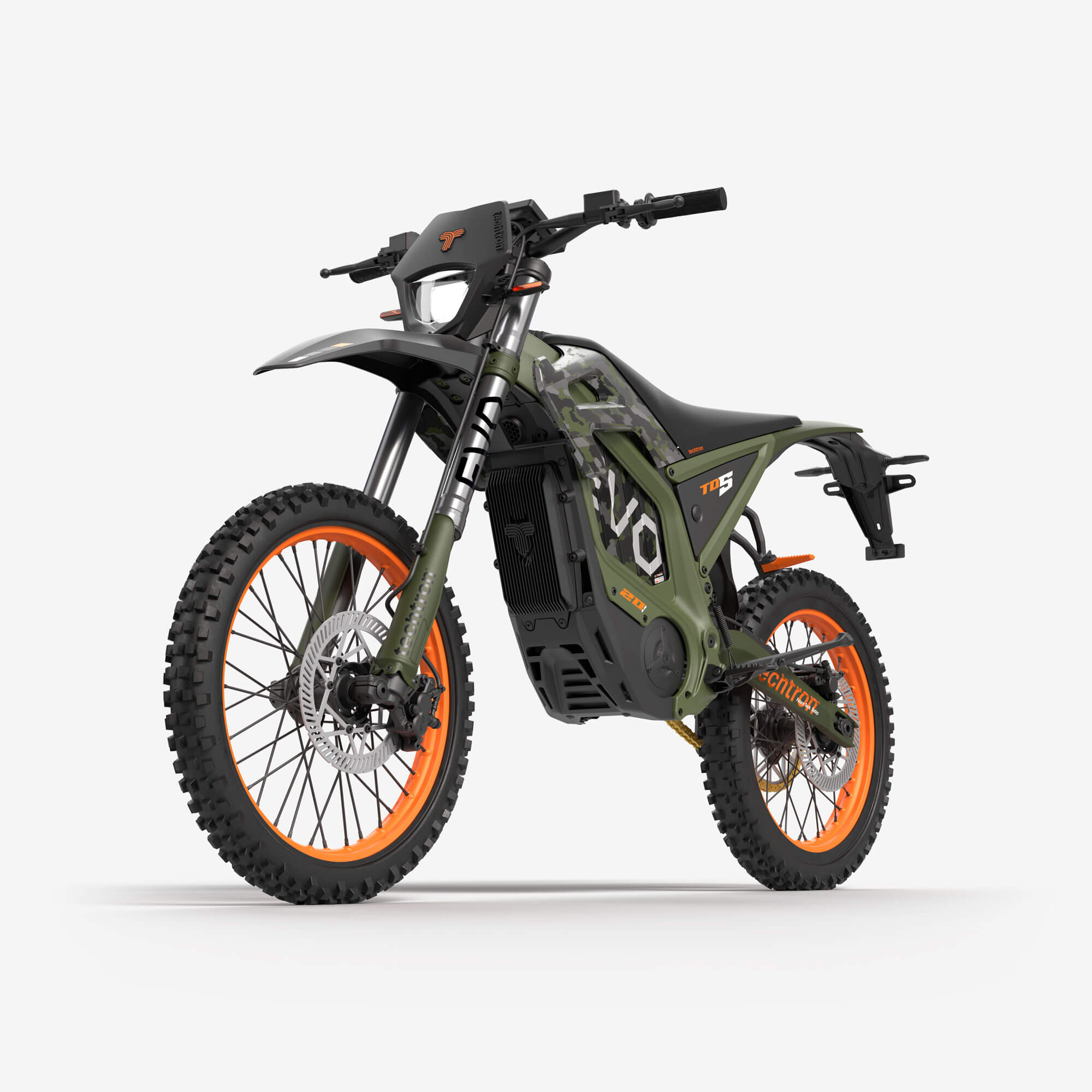

Orange, Red, Blue, Camo, Carbon
Ingress Protection:
IP66
Certifications:
CE, EEC, DOT, UL
Warranty:
1 Year
Display Features
7" TFT / UHD Display:
Ultra-high-definition visuals with vibrant colours and sharp detail.
Apple CarPlay® & Android Auto™:
Seamless smartphone integration for navigation, calls, and media.
Built-In Camera:
1024×600P photo resolution and 1080P video recording.
Bluetooth 5.3:
Fast, stable connectivity for devices and the techtron® App.
Navigation:
Turn-by-turn guidance directly on the display.
Cruise Control:
Maintain a steady speed without constant throttle input.
IP66 Rated:
Fully waterproof and weatherproof for all-weather performance.
Capacitive Touch Screen:
Responsive control, even in gloves or adverse conditions.
Built-In Speaker:
4Ω, 10W speaker for audio playback.
Customisable Layout:
Adjust the interface to suit rider preferences.
Multi-Language Support:
Switch between languages for global usability.
Data Sync:
Real-time ride data sync with the techtron® App.
USB Charging Port:
Charge devices while riding.
Brightness Adjustment:
Manual or auto light adaptation for visibility.
Light Indicators:
Visual notifications for key functions and alerts.
SmartApp Features
Full Ride Management:
Control bike settings, power modes, and performance directly from your smartphone.
GPS Tracking:
Locate your bike in real time, reduce theft risk, and track routes for recovery or monitoring.
Theft Prevention & Recovery:
Quickly find and recover stolen bikes using live GPS location.
Real-Time Performance Data:
Monitor speed, battery status, torque, and range while riding.
Navigation & Ride Tracking:
Turn-by-turn directions with route history logging.
Custom Ride Modes:
Adjust acceleration, top speed, and responsiveness to suit different terrains.
Energy Monitoring:
Track consumption to maximise range and efficiency.
Over-the-Air Updates:
Receive the latest firmware upgrades remotely.
Device Sharing:
Allow controlled bike access for other users.
Notifications & Alerts:
Instant updates on maintenance, battery status, and security.
Ideal For
Off-Road Exploration:
Tackle rugged mountain trails, forest tracks, and desert paths with confidence
Competitive Sports & Racing:
Designed for high-performance off-road competition
Urban Navigation:
Smooth handling and strong acceleration for city streets
Recreational Riding:
Enjoy weekend adventures on varied terrain
Mixed Terrain Use:
From dirt to asphalt, adaptable performance in any setting
Security & Security Protections
EABS (Electronic Assisted Braking System):
Prevents wheel lock-up, maintains stability, and ensures smooth stopping in all conditions.
Regenerative Braking:
Recovers energy during deceleration and provides smoother, more controlled braking.
App-Controlled Lighting:
LED headlight, brake light, and turn signals for enhanced visibility.
Vector Sine Wave Controller:
Monitors speed, torque, and current in real time to optimise performance and safety.
TÜV-Certified Charger:
CE and UKCA compliant for electrical safety and quality assurance.
Ingress Protection IP66:
Dustproof and waterproof for reliable performance in all weather.
GPS Tracking:
Live location tracking to deter theft and aid recovery.
Compliance Certifications:
-
CE: Compliant with EN 15194, EN 61000-6-3, and EN 60335-2-29 for safety, electromagnetic compatibility, and performance in the EU.
-
EEC: Certified under EU Regulation (EU) 168/2013 for European type-approval of two- and three-wheel vehicles.
-
DOT: Meets FMVSS 123 and FMVSS 108 standards for braking system and lighting safety in the U.S.
-
UL: Certified to UL 2271 and UL 2849 for battery system and electrical drive safety in electric vehicles.
Downloads
Download the Instruction Manual HERE
Power Redefined

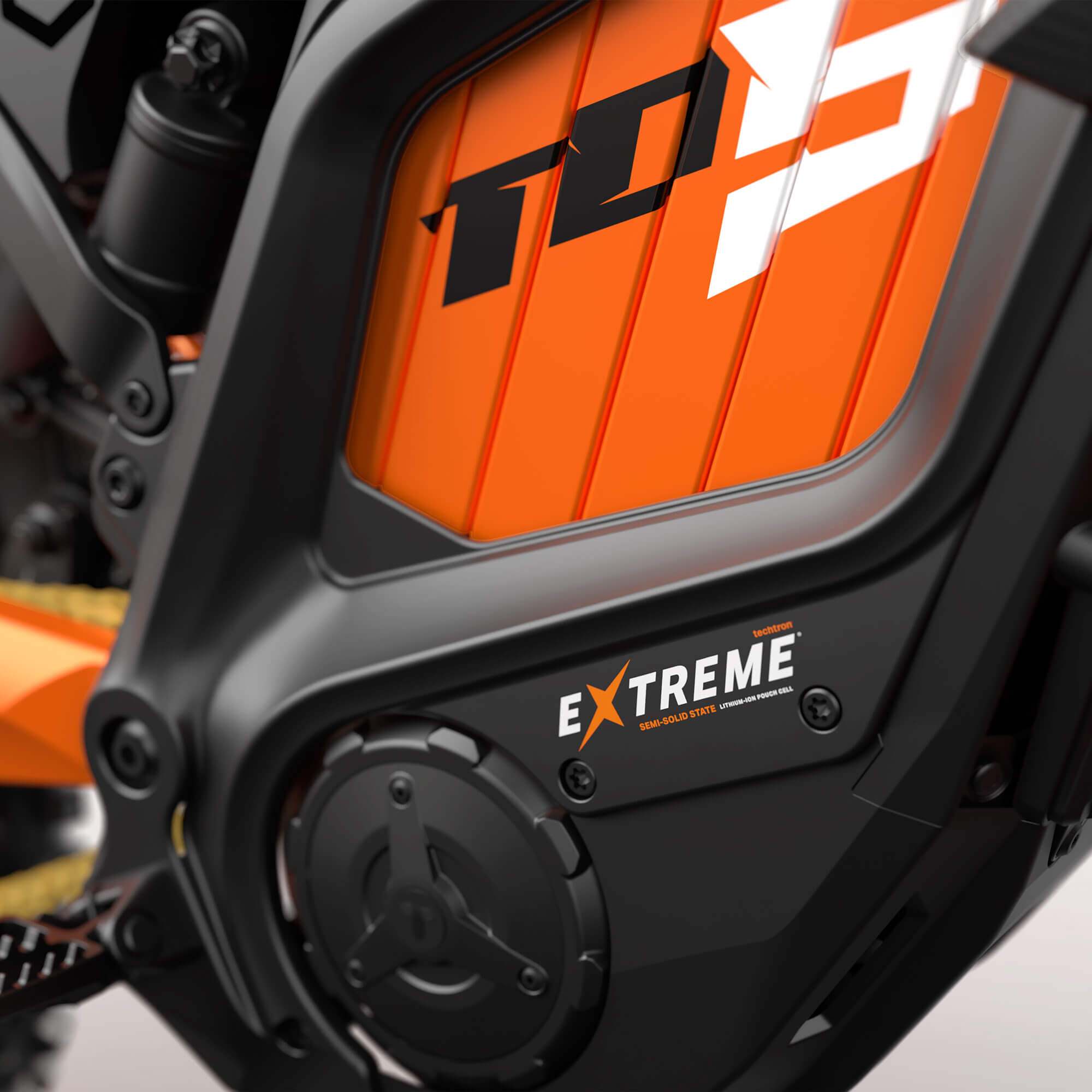

Powered by techtron®’s advanced semi-solid state lithium-ion polymer pouch cell technology, this high-performance battery delivers ultra-high energy density, rapid charging, and superior safety in a lightweight, compact form. Push further with confidence, efficiency, and next-generation reliability.
Expand to Find Out More
Key Features:
-
Semi-Solid State Polymer Pouch Cells: Higher safety margins, faster charging, and longer cycle life.
-
Interchangeable & Rechargeable: Swap packs in seconds for extended riding.
-
Ultra-High Energy Density: Compact size without compromising performance.
-
Fast-Charge Capability: Minimise downtime with rapid charging technology.
-
Smart BMS Integration: Monitors voltage, current, and temperature for optimal safety.
-
Advanced Thermal Regulation: Maintains stability under extreme loads.
-
Eco-Engineered Materials: Built with sustainability and precision manufacturing in mind.
-
21700 Cell Format: Industry-leading energy density in a proven cell size.
Ride Smarter
The techtron® App turns your smartphone into the ultimate control hub for the TD5 EVO, giving you complete command over performance, navigation, security, and customisation — wherever you ride. Stay seamlessly connected and in total control of your adventure.
Expand to Find Out More
Key Features:
- Vehicle Management: Full control over settings and performance.
- Battery Level Display: Monitor your battery status in real time.
- Speed & Trip Mileage: Track speed and distance with precision.
- Navigation & Riding Records: Plan routes and log your rides.
- Live GPS Tracking: Locate your bike instantly in case of theft.
- Anti-Theft Mode: Remotely disable your bike for added security.
- OTA Updates: Keep software up to date over the air.
Total Ride Control

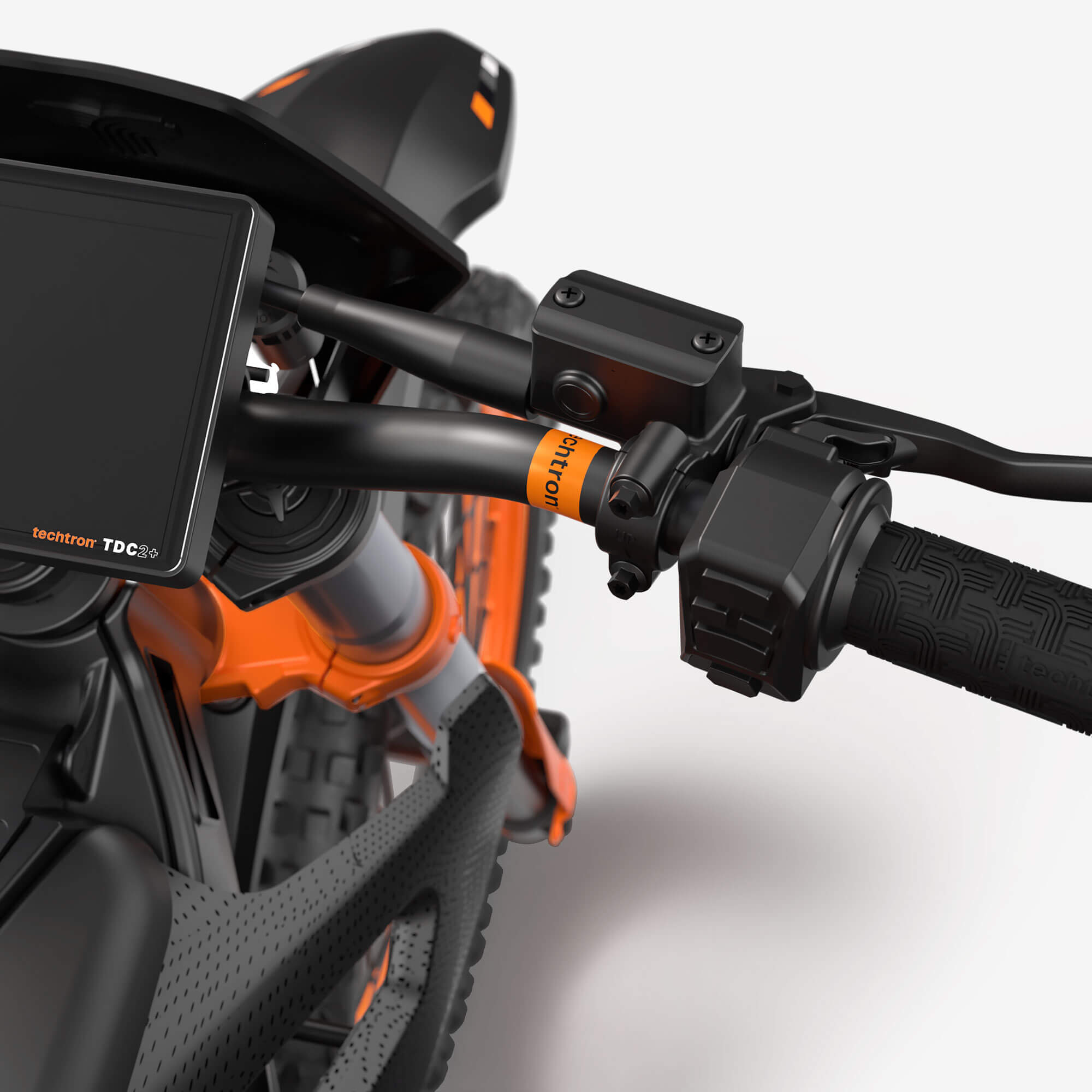

The TDC2 7" TFT Display puts navigation, performance data, and electric dirt bike controls in one sleek, weatherproof touchscreen for complete control on every ride. See every detail clearly and ride with unmatched confidence.
Expand to Find Out More
Key Features:
- IP66 Rated: Fully waterproof and weatherproof for all-weather use.
- CarPlay & Android Auto: Integrate your smartphone seamlessly.
- Capacitive Touch Screen: Ultra-sensitive, even with gloves.
- Speedometer & Navigation: Stay on track and informed.
- Bluetooth & Screen Mirroring: Connect devices and mirror apps.
- Video & Photo Recording: Capture moments in HD while riding.
- Custom Layouts: Personalise your display setup.
